200 SERIES - Attachments - Log Splitter

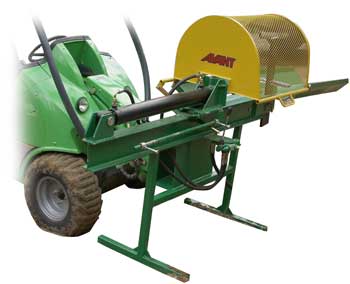

AVANT log splitter is the right attachment when you have cut logs and need to make firewood quickly and easily. Log splitter is equipped with a hydraulic cylinder which pushes the log against the splitting blade. Height of the blade is adjustable, allowing splitting either into two or into four pieces.
The splitter has automatic reverse and cylinder stroke can be adjusted with a limit switch. Safety features include a stop switch which prevents operation if the blade cover is not down. Transportation is easy – the splitter mounts on the quick attachment plate of the loader.
| Log diameter | max. 400 mm |
| Log length | max. 600 mm |
| Splitting capacity | 40 logs/min |
| Weight | 150 kg |
| Product no. | A21117 |
| Model | 216 |
220 |
| Suitable |  |
|
| Not Suitable |
