500/600 SERIES - Attachments -

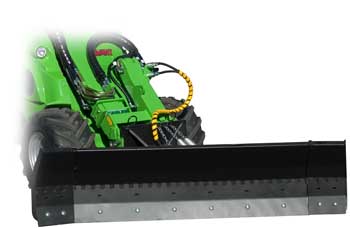

HD Dozer Blade
Equipped with hydraulic blade tilting, AVANT dozer blade is the ideal tool for snow removal, earthmoving and similar jobs where the materials must be dozed away quickly. The blade is equipped with spring release mechanism which protects the blade in case it hits a hard object.
HD Dozer blade is higher than normal blade which means that you can push higher volumes of snow, gravel etc. HD Dozer blade is equipped with two bolt-on extensions, 250 mm each which can be mounted as collecting or straight edge. Equipped with both straight and ice edge as standard.
| Working width | 2000 mm |
| Weight | 165 kg |
| Tilting angle | +/- 30° |
| Blade height | 500 mm |
| Model | 513 |
514 |
520F |
520+ |
528+ |
523+ |
530+ |
630 |
635 |
| Well suited |  |
|
|
|
|||||
| Suitable | |
|
|
|
|||||
| Not suitable | |
View in Action (1MB)
(you will need quicktime in order to play this video)
