500/600 SERIES - Attachments -

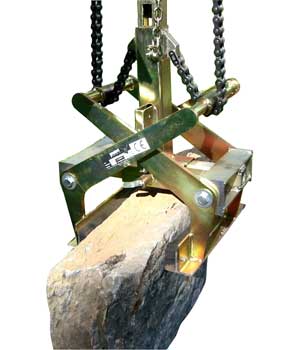

Stone grab
The mechanical stone grab is easy to mount on the Avant jib crane. Thanks to the powerful gripping force it can handle concrete components, kerb stones, natural stones, tombstones etc.
The stone grab is equipped with:
- Lifting eye for attaching to a crane hook
- Automatic load release
- Exchangeable rubber metal bars as gripping elements
- A spring loaded bolt for quick and easy opening width adjustment.
The stone grab is best mounted on an AVANT with telescopic boom. With the telescopic boom extended the max. outreach is 2000 mm, measured from the front wheel.
Requires also: Jib boom (A32395)
| Opening width | 50 - 480 mm |
| Inside height | 170 mm |
| Gripper length | 420 mm |
| Capacity | 900 kg |
| Weight | 55 kg |
| Product no. | A21179 |
| Model | 513 |
514 |
520F |
520+ |
528+ |
523+ |
530+ |
630 |
635 |
| Well suited |  |
|
|
|
|
|
|
|
|
| Suitable | |||||||||
| Not suitable |
