500/600 SERIES - Attachments -
Log cutter / splitter

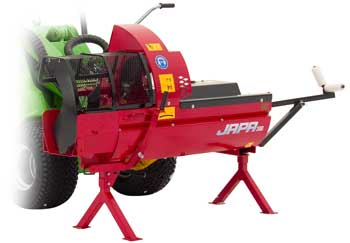

AVANT log cutter/splitter is a very efficient firewood making machine. It combines a chain saw and a hydraulic log splitter.
The hydraulically driven chain saw cuts the log, after cutting the log drops automatically on the splitting table where hydraulic cylinder pushes the log against the splitting blade. Position of the splitting blade can be adjusted, following the log diameter.
| Max. log diameter | 300 mm |
| Cutting length | 200-500 mm |
| Sawbar | 13" |
| Splitting force | 30 kN |
| Engine output min. | 20 hp |
| Weight | 265 kg |
| Product no. | A21029 |
| Model | 513 |
514 |
520F |
520+ |
528+ |
523+ |
530+ |
630 |
635 |
| Well suited |  |
|
|
|
|
|
|
||
| Suitable | |||||||||
| Not suitable | |
|
