500/600 SERIES - Attachments -

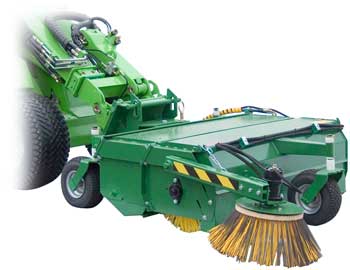

Broom 1300 with collector box
AVANT brooms with collector box are specially made for larger yards and street cleaning. Three big support wheels quarantee smooth and easy operation. With the side brush cleaning of kerbs and street corners is easy. Collector box emptying is hydraulic – operation with auxiliary hydraulics control lever.
• Excellent sweeper for larger areas
• Front mounted brush rotates outwards throwing the material backwards on to the collector box located as close to the loader as possible.
• because of it's unique collecting method the collector box can collect more material as conventional collectors.
• Center of gravity close to the loader even with full collector box – better balance
• Hydraulic emptying of collector box
• Can be used on lawns and other sensitive surfaces as well
Optional equipment:
• Side brush: Hydraulic drive, brush diameter 500 mm, mounts on the right/left or on both sides of the broom.
• Water tank with spraying system: 12V electric motor,
4 nozzles, 80 l water tank.
| Working width | 1050/1300 mm |
| Working width with side brush | 1350/1600 mm |
| Waste box volume | 170 / 200 l |
| Weight | 230/380 kg |
| Product no. | A33543/A2935 |
| Product no. with Side brush | A21255/A21256 |
| Water tank with spraying system | A2882 |
| Model | 513 |
514 |
520F |
520+ |
528+ |
523+ |
530+ |
630 |
635 |
| Well suited |  |
|
|
|
|
|
|||
| Suitable | |
||||||||
| Not suitable | |
|
View in Action (1MB)
(you will need quicktime in order to play this video)
