500/600 SERIES - Attachments - General Buckets

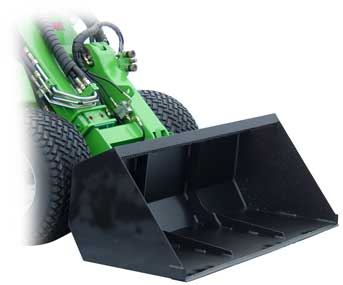

AVANT general buckets are designed so that the operator can see the front edge of the bucket from the driver’s seat, which means quick and easy loading and emptying.There is a grill at the upper end of the bucket which prevents stones from falling towards the operator.
General buckets work normally best when it's width is same as loaders.
Available with straight edge – on special request also with teeth.
Width |
Volume |
Weight |
Product no. |
890 mm |
180 l |
57 kg |
A21044 |
1050 mm |
210 l |
65 kg |
A1315 |
1100 mm |
215 l |
68 kg |
A21312 |
1280 mm |
260 l |
75 kg |
A21043 |
1400 mm |
285 l |
90 kg |
A21168 |
| Model | 513 |
514 |
520F |
520+ |
528+ |
523+ |
530+ |
630 |
635 |
| Well suited |  |
|
|
|
|
|
|
|
|
| Suitable | |||||||||
| Not suitable |
