500/600 SERIES - Attachments -

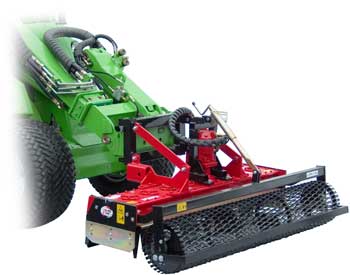

Rotary Harrow
AVANT rotary harrow is an excellent leveler for lawn beds, yards, gardens etc. – for places where the ground needs to be perfectly levelled. It harrows only the topsoil and gives a very nice finish for sowing. Required output is lower than that of the stone burier. Working depth is adjusted with the rear field roller which levels the seeding bed during operation.
| Working width | 1220 mm | 1400 mm |
| Width of the field roller | 1350 mm | 1500 mm |
| Working depth | 0-140 mm | 0-140 mm |
| Knives | 12 pcs | 14 pcs |
| Weight | 180 kg | 210 kg |
| Product no. | A21077 | A21185 |
1220 mm rotary harrow suitability chart
| Model | 513 |
514 |
520F |
520+ |
528+ |
523+ |
530+ |
630 |
635 |
| Well suited |  |
|
|
|
|
|
|||
| Suitable | |
|
|
||||||
| Not suitable |
1400 mm rotary harrow suitability chart
| Model | 513 |
514 |
520F |
520+ |
528+ |
523+ |
530+ |
630 |
635 |
| Well suited | |
|
|
|
|
|
|||
| Suitable | |
|
|
||||||
| Not suitable |
