500/600 SERIES - Attachments -

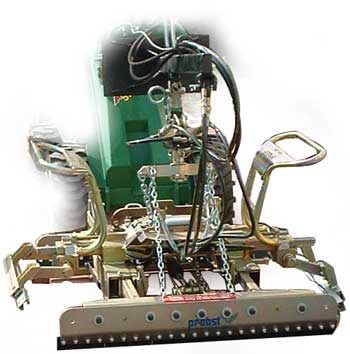

Stone installation clamp
With the hydraulic installation clamp you can lay paving stones quickly and efficiently.
The hydraulic installation clamp is equipped with:
- Adjustable side grippers for the exact shaping of the installation pattern.
- Hydraulic rotation
- ADV pushing off device. The ADV presses the blocks into the laying course automatically once the clamp is opened – this way the cocking of the blocks can be avoided and a lot of time is saved, because one doesn’t have to reposition the blocks by hand.
- Two hydraulic circuits.
Can be mounted on Avant 530+ , 630 and 635.
| Main gripping width | 575 - 1245 mm |
| Total width | 990 - 1480 mm |
| Carrying capacity | 400 kg |
| Weight | 230 kg |
| Product no. | A21180 |
| Model | 513 |
514 |
520F |
520+ |
528+ |
523+ |
530+ |
630 |
635 |
| Well suited |  |
|
|
||||||
| Suitable | |||||||||
| Not suitable | |
|
|
|
|
|
