500/600 SERIES - Attachments -

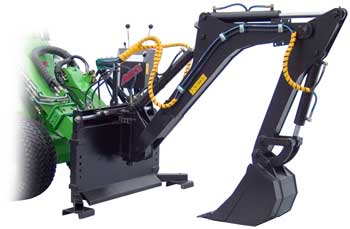

Backhoe 220 / 250
AVANT 220 and 250 backhoes are very compact and amazingly powerful digging units, specially developed for hard construction work. The slewing angle of both models is full 180°. They are easy and quick to mount on the loader, and a the hydraulically operated locking bar which mounts on the loader chassis ensures stability during operation. In addition, manually adjustable support jacks are standard feature. Digging from the driver’s seat is comfortable and easy.
• Compact and powerful backhoe with excellent digging and loading capabilities
• Slewing 180°
• Rigid and solid mounting on to the loader via hydraulically operated locking bar
• Dozer blade as standard
• Comprehensive bucket range for various jobs
• Robust design for professional construction work.
| Backhoe 220 | Backhoe 250 | |
| Weight | 350 kg | 370 kg |
| Slewing | 180° | 180° |
| Digging depth | 2200 mm | 2500 mm |
| Loading height | 2100 mm | 2100 mm |
| Product no. | A2865 (500 s.) A21172 (600 s.) (Without bucket) |
A2890 (500 s.) A21155 (600 s.) (Without bucket) |
| Bucket 280 mm | A32455 | |
| Bucket 400 mm | A32415 | |
| Bucket 1000 mm | A2932 | |
| Hydraulic tilt bucket 700 mm |
A2871 | |
Backhoe 220 suitability chart
| Model | 513 |
514 |
520F |
520+ |
528+ |
523+ |
530+ |
630 |
635 |
| Well suited |  |
|
|
|
|
|
|
||
| Suitable | |||||||||
| Not suitable | |
|
Backhoe 250 suitability chart
| Model | 513 |
514 |
520F |
520+ |
528+ |
523+ |
530+ |
630 |
635 |
| Well suited | |
|
|
|
|||||
| Suitable | |
|
|
||||||
| Not suitable | |
|
